- Title

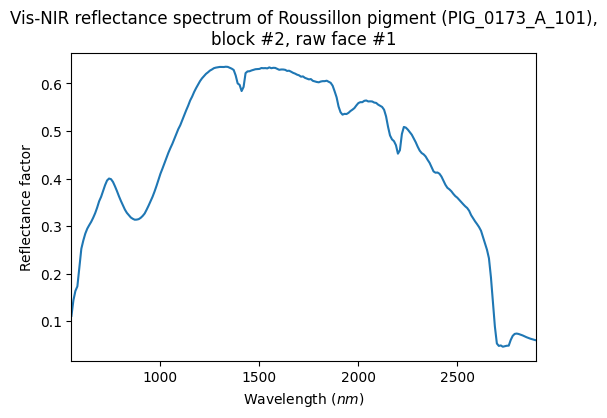

- Vis-NIR reflectance spectrum of Roussillon pigment (PIG_0173_A_101), block #2, raw face #1
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-06-29 06:13:52 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 550.0 - 590.0 $nm$ ; 600.0 - 1420.0 $nm$ ; 1430.0 - 2900.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Roussillon (PIG_0176_A_101), Red Ochre - raw block #2
- Texture
- compact fine grained
- Thickness
- 40.0 $\pm$ 10.0 $mm$
- Temperature
- 297.5 $\pm$ 0.5 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Roussillon pigments (PIG_0173_A): raw blocks, powders with different grain sizes and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191012_400
