Vis-NIR reflectance spectrum of Roussillon pigment (PIG_0173_A_303), block #1, sawn face #1
- Title
- Vis-NIR reflectance spectrum of Roussillon pigment (PIG_0173_A_303), block #1, sawn face #1
- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20191012_400
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Roussillon pigments (PIG_0173_A): raw blocks, powders with different grain sizes and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191012_400
- Publications
- Database
- Experimentalists
- Experiment type
- laboratory measurement
- Type
- reflectance factor
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- cylindrical raw aluminium sample holders of different sizes and depths
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 550.0 - 590.0 10.0 2.1 0.1 #2 600.0 - 1420.0 10.0 9.5 0.5 #3 1430.0 - 3000.0 10.0 19.0 1.0 - Filters
-
Type Center/Edge ($nm$) Width ($nm$) Place #1 several high frequency filters output of monochromator - Scan number
- 10
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 5.8°
- Resolution observation
- 4.1°
Illumination
Observation
- Comments
- some wavelength dependent polarization
- Observation mode
- single spot
- Resolutions
- 7.5 ${\pm}$ 0.2 $mm$
- Comments
- illumination with 9 fiber optic spots within 7.5 mm diameter, observation within an ellipse of 23x20 mm
- Name

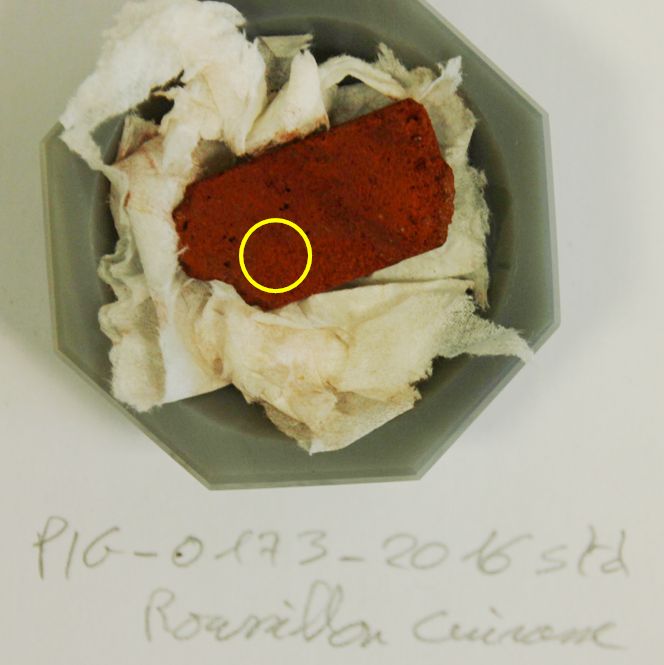

- Pigment Roussillon (PIG_0173_A_303), Red Ochre - small sawn block #1
- Comments
- Measured on sawn face #1
- Experiment
- Vis-NIR reflectance spectra of Roussillon pigments (PIG_0173_A): raw blocks, powders with different grain sizes and painted matter
- Date begin
- 2019-10-03
- Release date
- 2020-08-28 04:42:57 UTC+0000
- Version (Date)
- #1 (2020-08-28 04:42:57 UTC+0000, Updated: 2022-11-07 08:01:01 UTC+0000)
- History
-
Date Mode Version Status Comments 2020-06-29 06:13:52 UTC+0000 first import #1 valid version
- Analysis
- raw bidirectional reflectance spectrum calibrated: 1) with "Spectralon 99%" measured under same geometry using its absolute BRDF (0.50-2.1 µm) and 2) with "Infragold" using its relative spectral reflectance (2.1-3.0 µm). The visible spectrum (0.5-1.1µm) is scaled by a factor 0.96 and merged with the NIR spectrum (1.1-3.0 µm). A subtraction of the residual H2O absorption bands have been applied.
- Quality flag
- 4
- Validator(s)
