Sample

Name: Pigment Beauregard (PIG_0174_A_201), raw block #2

Owner of sample

Database

PIG

Experimentalists

Emilie Chalmin-Aljanabi

Origin of sample

Date: 2010-10-25
Provider: Pigmenthothèque - EDYTEM

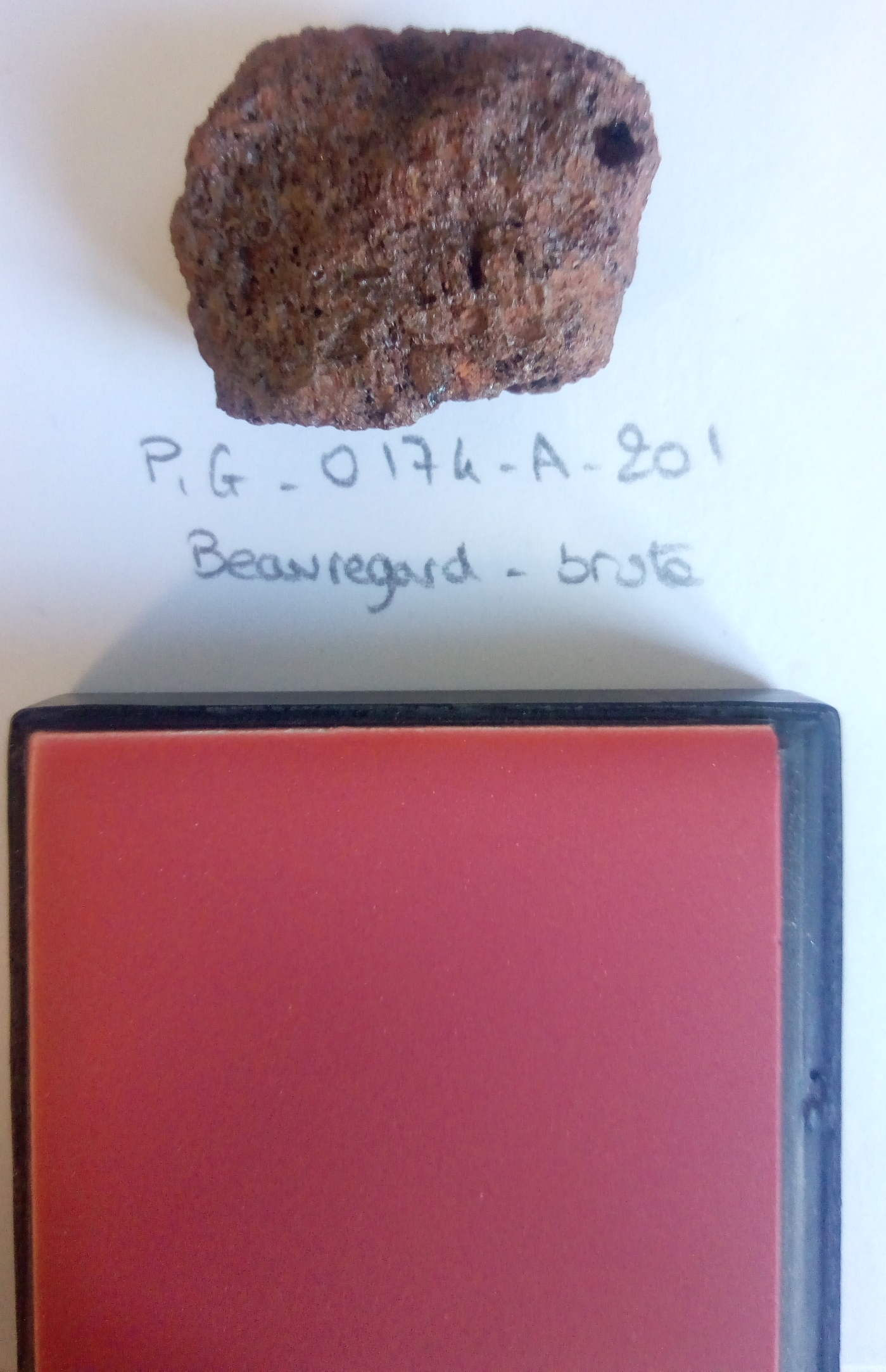

Pigment Beauregard (PIG_0174_A_201) raw block #2 (~31x22x18 mm), face #1, with red spectralon standard

Pigment Beauregard (PIG_0174_A_201) raw block #2 (~31x22x18 mm), face #2, with red spectralon standard

Physical characteristics

Thickness: 18.0 $\pm$ 3.0 $mm$
Mass: 4.04 $g$
Surface roughness: raw , rough
Substrate material: no
Comments: equant shaped block with approximate size 31x22x18 mm, red with a brown-black fresh faces
measured on raw face #1

Sample environment: Temperature

Temperature: 297.5 $\pm$ 0.5 $K$
Temperature max: 300.0 $K$

Sample environment: Fluid

Type: ambient air
Fluid temperature: 297.5 $K$
Fluid pressure: 1.0 $bar$
Comments: room conditions

Layers in sample

Number

1

Layers

Pigment Beauregard - raw block #2 , 18.0 $mm$
