- Title

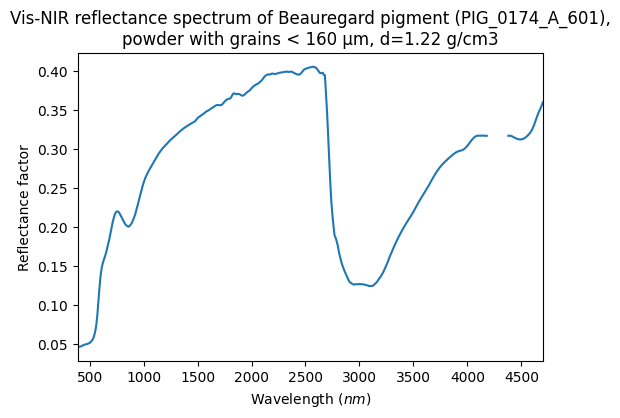

- Vis-NIR reflectance spectrum of Beauregard pigment (PIG_0174_A_601), powder with grains < 160 µm, d=1.22 g/cm3
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-08-14 15:39:34 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 392.0 - 673.0 $nm$ ; 683.0 - 913.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 920.0 - 1420.0 $nm$ ; 1430.0 - 3190.0 $nm$ ; 3200.0 - 4180.0 $nm$ ; 4380.0 - 4700.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Beauregard (PIG_0174_A_601), powder (grains inf. 160µm, d=1.22)
- Texture
- pulverulent
- Temperature
- 297.4 $\pm$ 0.5 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Beauregard pigments (PIG_0174_A): raw blocks, powders, polished plot and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200812_100
- Publications
