- Title

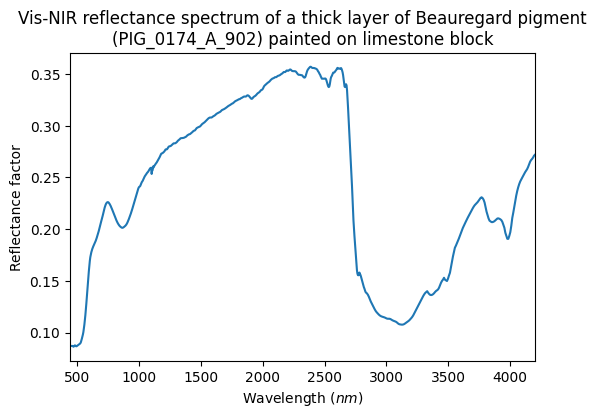

- Vis-NIR reflectance spectrum of a thick layer of Beauregard pigment (PIG_0174_A_902) painted on limestone block
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-08-14 15:39:34 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 442.0 - 598.0 $nm$ ; 602.0 - 1426.0 $nm$ ; 1430.0 - 2834.0 $nm$ ; 2842.0 - 4202.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Beauregard (PIG_0174_A_901) painted on limestone block
- Texture
- cemented granular, compact fine grained
- Temperature
- 293.0 $\pm$ 5.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Beauregard pigments (PIG_0174_A): raw blocks, powders, polished plot and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200812_100
