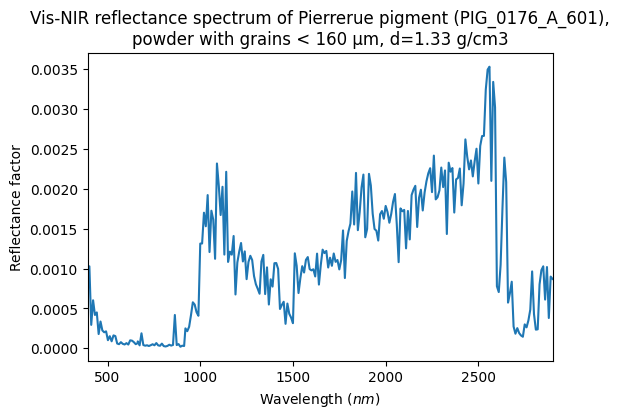

Vis-NIR reflectance spectrum of Pierrerue pigment (PIG_0176_A_601), powder with grains < 160 µm, d=1.33 g/cm3 | PIG | SSHADE

Spectrum preview

Title

Vis-NIR reflectance spectrum of Pierrerue pigment (PIG_0176_A_601), powder with grains < 160 µm, d=1.33 g/cm3

Database

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2020-08-17 20:54:19+0000 UTC)

Instrument parameters

Instrument: SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode: spectrum
Valid spectral range(s): 392.0 - 673.0 $nm$ ; 683.0 - 913.0 $nm$
Observation geometry: bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Instrument parameters

Instrument: SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode: spectrum
Valid spectral range(s): 920.0 - 1420.0 $nm$ ; 1430.0 - 2900.0 $nm$
Observation geometry: bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Pigment Pierrerue (PIG_0176_A_601), bauxite powder (grains inf. 160µm, d=1.33)
Texture: pulverulent
Temperature: 297.9 $\pm$ 0.5 $K$

References

Data reference: Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Pierrerue pigments (PIG_0176_A): raw blocks, powders, plots and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200814_100
