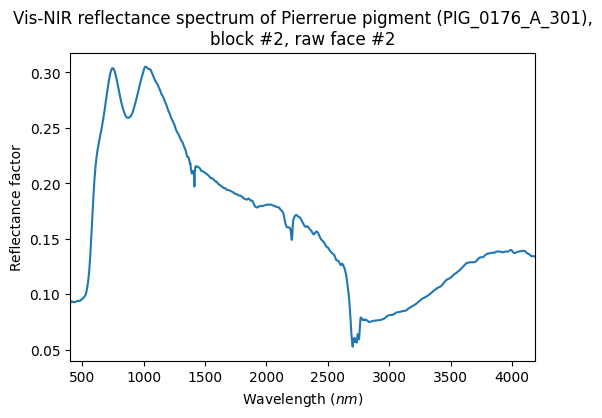

Vis-NIR reflectance spectrum of Pierrerue pigment (PIG_0176_A_301), block #2, raw face #2 | PIG

Spectrum preview

Title

Vis-NIR reflectance spectrum of Pierrerue pigment (PIG_0176_A_301), block #2, raw face #2

Database

PIG

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2021-04-04 14:06:41+0000 UTC)

Instrument parameters

Instrument: SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode: spectrum
Valid spectral range(s): 402.0 - 598.0 $nm$ ; 602.0 - 1598.0 $nm$ ; 1602.0 - 2834.0 $nm$ ; 2842.0 - 4186.0 $nm$
Observation geometry: bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Pigment Pierrerue (PIG_0176_A_301), bauxite block #2
Texture: compact poor grained
Thickness: 7.0 $\pm$ 2.0 $mm$
Temperature: 297.5 $\pm$ 2.0 $K$

References

Data reference

Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Pierrerue pigments (PIG_0176_A): raw blocks, powders, plots and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200814_100

Publications

Chalmin et al., 2021, Color Res. Appl., on-line, 1 - 21
