Vis-NIR reflectance spectrum of a very thin layer of Beauregard pigment (PIG_0174_A_902, grains < 160 µm) painted on brown-grey limestone chip
- Title
- Vis-NIR reflectance spectrum of a very thin layer of Beauregard pigment (PIG_0174_A_902, grains < 160 µm) painted on brown-grey limestone chip
- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20200812_100
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Beauregard pigments (PIG_0174_A): raw blocks, powders, polished plot and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200812_100
- Publications
-
- Comments
- unpublished
- Database
- Experimentalists
- Experiment type
- laboratory measurement
- Type
- reflectance factor
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- cylindrical aluminium sample holders of various sizes for powder
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 502.0 - 598.0 4.0 0.96 0.25 #2 602.0 - 1426.0 4.0 3.8 0.5 #3 1430.0 - 3198.0 4.0 7.6 0.5 #4 3202.0 - 4186.0 8.0 15.5 1.0 - Filters
-
Type Center/Edge ($nm$) Width ($nm$) Place #1 several high frequency filters output of monochromator - Scan number
- 10
- Comments
- measured over the 402-4202nm range
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 5.8°
- Resolution observation
- 4.1°
Illumination
Observation
- Comments
- some wavelength dependent polarization
- Observation mode
- single spot
- Resolutions
- 7.5 ${\pm}$ 0.2 $mm$
- Comments

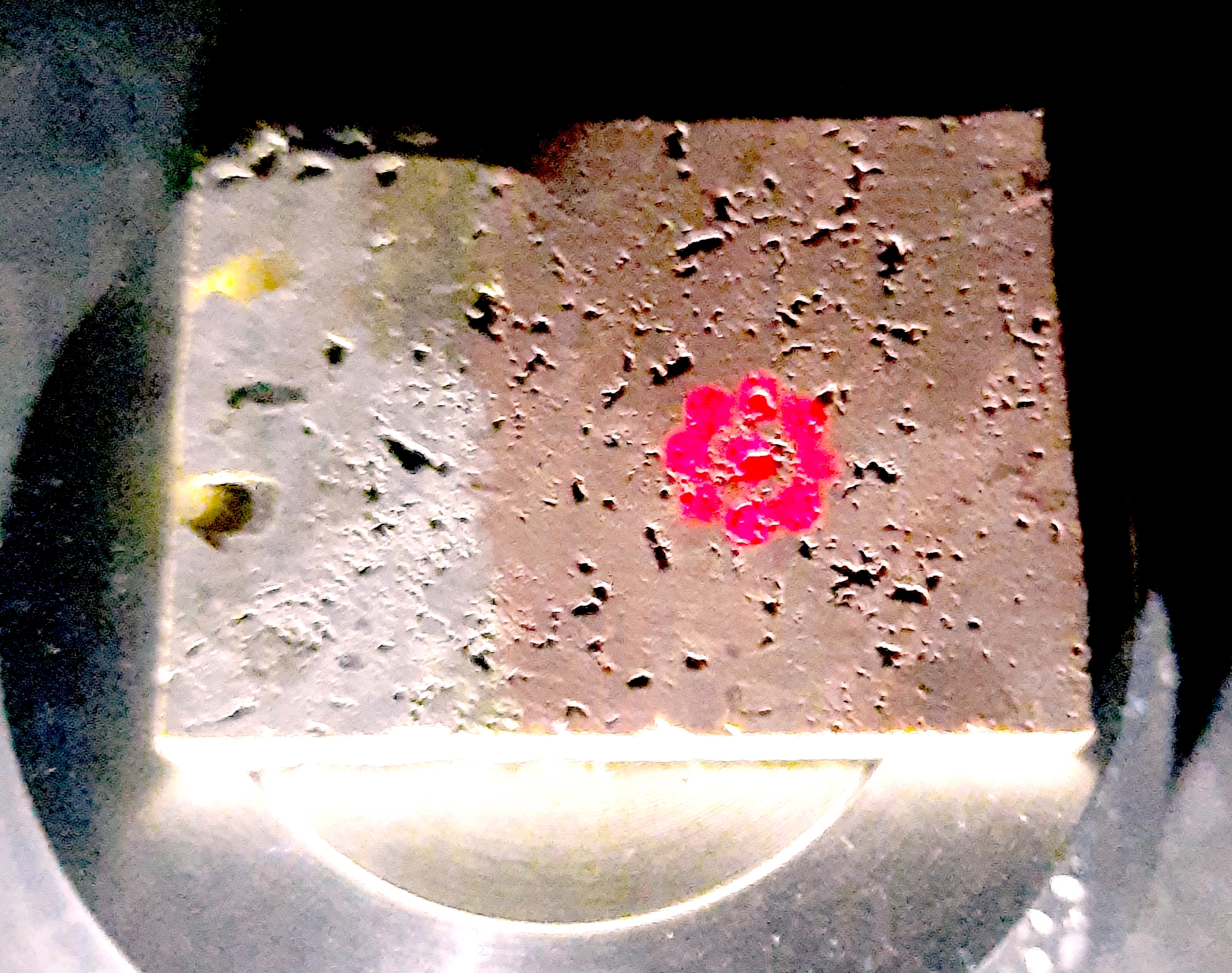

- illumination with 9 fiber optic spots within 7.5 mm diameter, observation within an ellipse of 23x20 mm
- Experiment
- Vis-NIR reflectance spectra of Beauregard pigments (PIG_0174_A): raw blocks, powders, polished plot and painted matter
- Date begin
- 2020-02-24
- Release date
- 2021-03-31 17:05:45 UTC+0000
- Version (Date)
- #1 (2021-03-31 17:05:45 UTC+0000, Updated: 2022-11-07 07:43:28 UTC+0000)
- History
-
Date Mode Version Status Comments 2021-03-30 11:44:29 UTC+0000 first import #1 valid version
- Analysis
- raw bidirectional reflectance spectrum calibrated: 1) with "Spectralon 99%" measured under same geometry using its absolute BRDF (0.4-1.3µm) and 2) with "Infragold" using its relative spectral reflectance (1.3-4.2µm). A very slight smoothing (binomial over 3 points) has been applied except in the absorption bands.
- Quality flag
- 4
- Validator(s)
