- Title

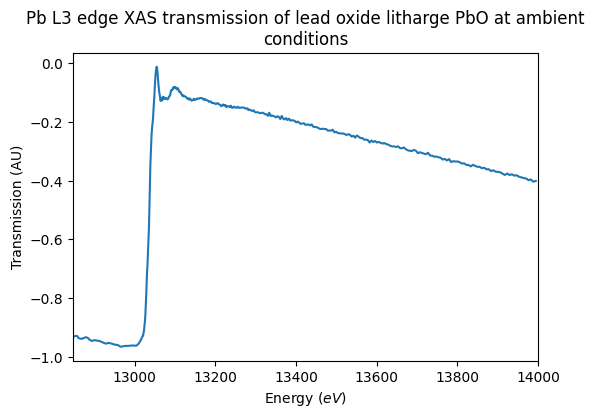

- Pb L3 edge XAS transmission of lead oxide litharge PbO at ambient conditions
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2022-10-05 20:38:04 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 12847.0 - 14000.0 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pellet of PbO mixed with BN
- Origin
- commercial
- Texture
- compact poor grained
- Thickness
- 2.0 $\pm$ 0.5 $mm$
- Temperature
- 20.0 $\pm$ 5.0 $^{\circ}C$
- Pressure
- 1.0 $bar$
References
- Data reference
- Testemale, Denis; Brugger, Joel; Etschmann, Barbara; Liu, Weihua (2017): Pb L3 edge XAS transmission of lead oxide litharge PbO at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20170215_000
- Publications
