Sample
Name
Water ice and Smectite intra-mixture particles 67±31 μm at 167 K
Database
Experimentalists
Date
2014-07-30

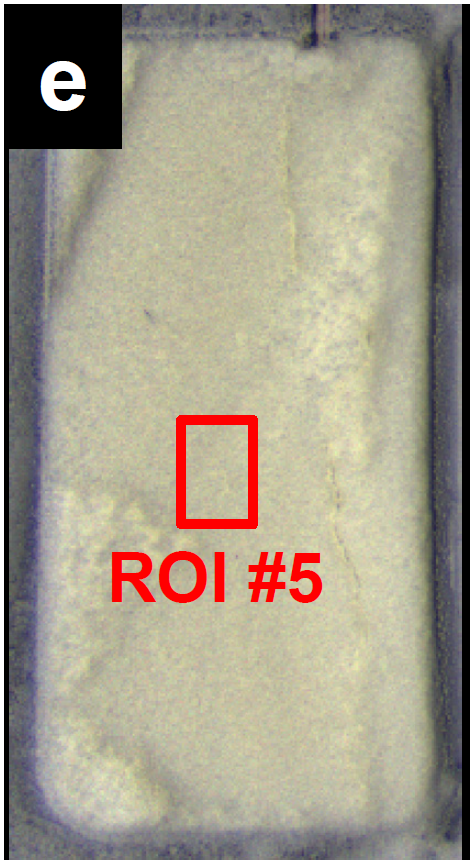

Water ice and Smectite intra-mixture spherical particles 67±31 μm deposited inside the sample holder in the SCITEAS simulation chamber.
Physical characteristics
Thickness
20.0 $\pm$ 1.0 $mm$
Diameter
30.0 $mm$
Surface roughness
smooth
Substrate material
aluminum sample holder
Substrate comments
The sample is positionned in one of the four 60x30 mm compartments dividing the rectangular 120x60 mm sample holder with a thickness of 20mm
Comments
Fresh sample prepared just before the measurement.
Temperature
167.0 $K$
Temperature max
167.0 $K$
Type
vacuum
Fluid pressure
2.0e-05 $mbar$
Comments
The sample was kept under secondary vacuum
Number
1
Layers
Title
Deposition of the icy particles in the sample holder

Precursors

Matters

Produced sample

Sample
Water ice and Smectite intra-mixture particles 67±31 μm at 167 K (this sample)
Processing steps
Step Chronology Date Type Process Changes
#1 during layer formation 2014-07-30 layer formation The layer was produced by manual deposition of the icy spheres by sieving through a 400 µm sieve on the sample holder pre-cooled with liquid nitrogen, in a freezer. This sieving avoids the introduction of large agglomerates of icy spheres in the sample and allows the formation of a homogeneous layer of reproducible density.
