Spectrum preview
Title

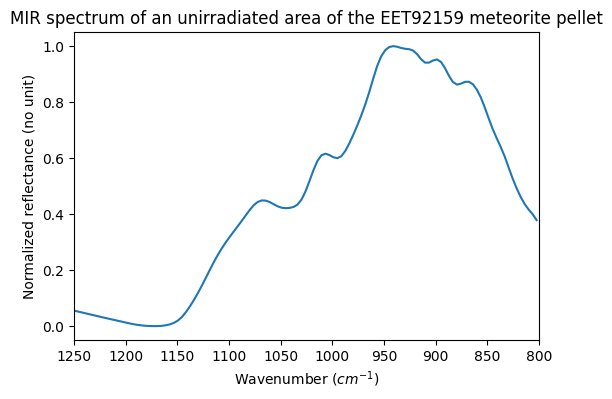

MIR spectrum of an unirradiated area of the EET92159 meteorite pellet
Database
Experiment type
laboratory measurement
Spectrum type
normalized reflectance
Version
#1 (2024-07-01 11:46:45 UTC+0000)
Instrument parameters
Instrument
SMIS Cary 670 - confocal reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
800.0 - 1250.0 $cm^{-1}$
Observation geometry
specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
EET92159 pellet
Texture
compact fine grained
Thickness
300.0 $\pm$ 100.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
Pressure
5200.0 $bar$
References
Data reference
Lantz, Cateline (2022): MIR spectra of carbonaceous chondrites irradiated by $He^+$ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20240701_01
Publications
