- Title

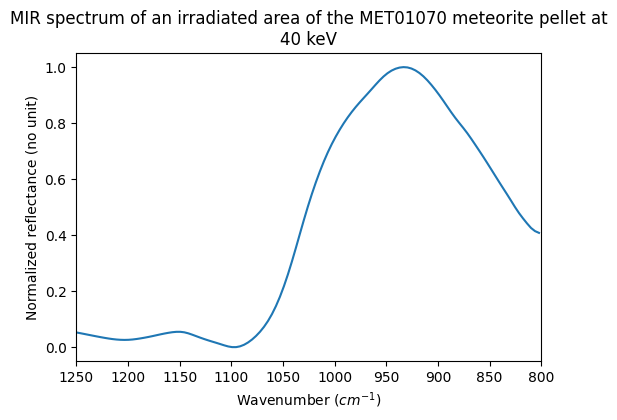

- MIR spectrum of an irradiated area of the MET01070 meteorite pellet at 40 keV
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized reflectance
- Version
- #1 (2024-07-01 11:46:45 UTC+0000)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 800.0 - 1250.0 $cm^{-1}$
- Observation geometry
- specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- MET01070 pellet
- Texture
- compact fine grained
- Thickness
- 300.0 $\pm$ 100.0 ${\mu}m$
- Temperature
- 300.0 $\pm$ 5.0 $K$
- Pressure
- 5200.0 $bar$
- Irradiated by
-
- atomic ions , 40.0 $keV.particle^{-1}$
References
- Data reference
- Lantz, Cateline (2022): MIR spectra of carbonaceous chondrites irradiated by $He^+$ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20240701_01
- Publications
