- Title

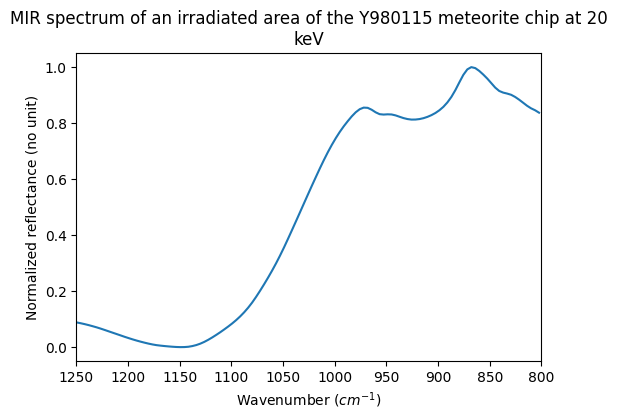

- MIR spectrum of an irradiated area of the Y980115 meteorite chip at 20 keV
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized reflectance
- Version
- #1 (2024-12-17 10:23:03 UTC+0000)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 800.0 - 1250.0 cm−1
- Observation geometry
- specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- Y980115 chip
- Texture
- compact
- Temperature
- 300.0 ± 5.0 K
- Pressure
- 5200.0 bar
- Irradiated by
-
- atomic ions , 20.0 keV.particle−1
References
- Data reference
- Lantz, Cateline (2022): MIR spectra of carbonaceous chondrites irradiated by He+ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20240701_01
- Publications
